Cummins gas gensets are globally recognized for advanced electronic control, low NOx emissions, and exceptional durability. The gensets are equipped with electronic ignition and control modules for precise fuel management.
Applications: Telecom sites, hospitals, commercial complexes, government projects.

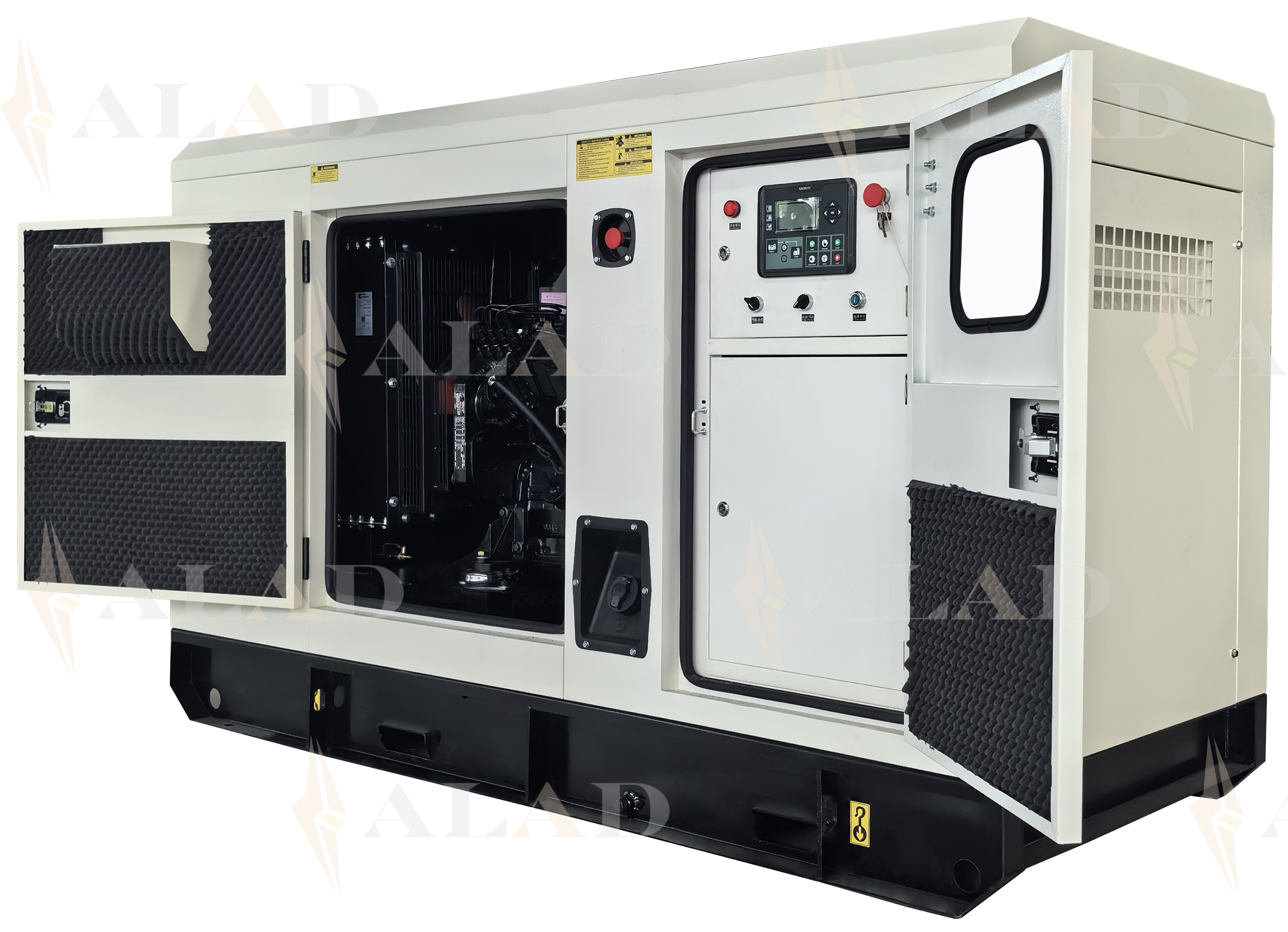

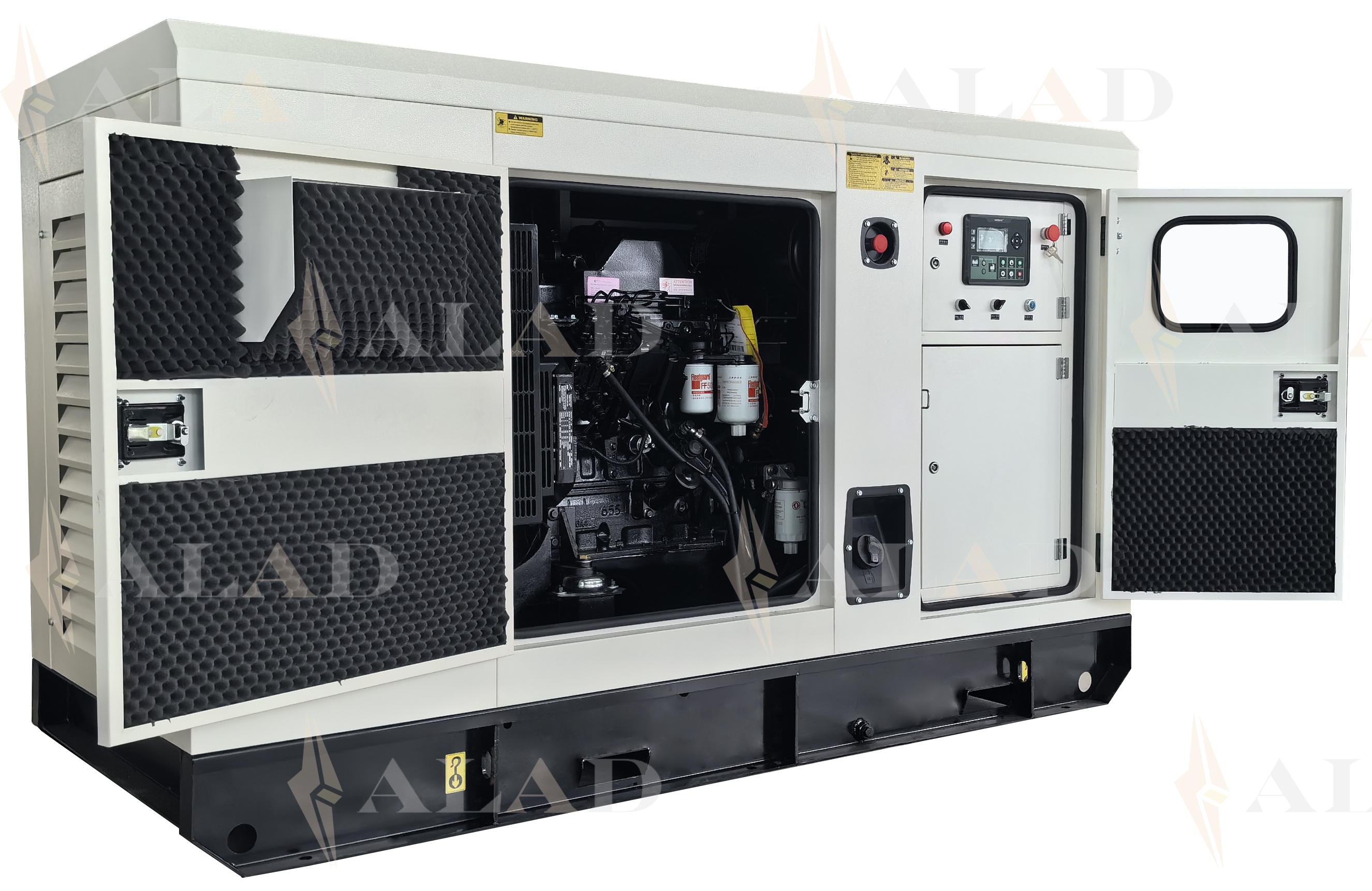

Optional Configurations: Open type | Silent type | Emergency standby-ready
| Cummins series generator sets | ||||||||||
| Genset Model | Prime power | Standby power | Motor capacity | Engine Model | Engine | Gross Weight | Dimensions | |||
| 1H power | Cylinders | Bore * Stroke | Displacement | |||||||
| KW | KW | KVA | KW | mm | L | KG | L*W*H mm | |||
| ALD-24CFNG | 24 | 26.4 | 30 | G3.9 | 30 | L4 | 102*120 | 3.9 | 850 | 2180*735*1500 |
| ALD-30CFNG | 30 | 33 | 37.5 | GTA3.9 | 45 | L4 | 102*120 | 3.9 | 850 | 2180*735*1500 |
| ALD-50CFNG | 40 | 44 | 50 | G5.9 | 60 | L6 | 102*120 | 5.9 | 1300 | 2620*800*1500 |
| ALD-80CFNG | 80 | 88 | 100 | GTA5.9 | 90 | L6 | 102*120 | 5.9 | 1300 | 2620*800*1500 |
| ALD-100CFNG | 100 | 110 | 125 | GTA8.3 | 136 | L6 | 114*135 | 8.3 | 1900 | 2900*1045*1780 |
| ALD-120CFNG | 120 | 132 | 150 | GTA8.3 | 136 | L6 | 114*135 | 8.3 | 1900 | 2900*1045*1780 |
| ALD-140CFNG | 140 | 154 | 175 | GTA8.9 | 165 | L6 | 114*145 | 8.9 | 1900 | 2900*1045*1780 |
| ALD-150CFNG | 150 | 165 | 187.5 | GTA9.5 | 180 | L6 | 116.5*148 | 9.5 | 2000 | 2900*1045*1780 |
| ALD-250CFNG | 250 | 275 | 312.5 | Z15N | 330 | L6 | 135*169 | 14.5 | 3220 | 3420*1360*2010 |
| ALD-200CFNG | 200 | 220 | 250 | GTA855 | 220 | L6 | 140*152 | 14 | 2700 | 3270*1150*1700 |
| ALD-300CFNG | 300 | 330 | 375 | GTA19 | 330 | L6 | 159*159 | 19 | 4300 | 3700*1280*2100 |
| ALD-350CFNG | 300 | 330 | 375 | QSK19N | 380 | L6 | 159*159 | 19 | 4300 | 3700*1280*2100 |
| ALD-500CFNG | 450 | 495 | 562.5 | GTA38 | 550 | V12 | 159*159 | 38 | 7200 | 4350*2100*2200 |
